Motorcycle/Citycoco Scooter Electric Bike E

Overview

Basic Info.

Model NO.	Lithium-Ion Battery
Capacity	40ah
Installation	Packaged
Nominal Voltage	72V
Electrolyte	Alkaline
Shape	Flat Battery
Application	E-Bike, Escooter
Components	Nmc
Lifespan	2000 Cycles
Weight	Approx 22kg
Sizes	341.5(H)*239(W)*179(L)mm Adjustable
Voltage	72V
Transport Package	Carton and Pallet
Specification	LiFePO4
Trademark	OEM
Origin	Hunan, China
HS Code	8507600090
Production Capacity	5000 Sets/Month

Product Description

Motorcycle/Citycoco Scooter Electric Bike E-Bike 48V/60V/72V/96V
10ah 12ah 20ah 40ah 50ah 60ah 70ah 80ah 100ah LiFePO4 Lithium Ion Lipo Li Ion Battery

Product Description

CTS provide OEM solutions for different project

Battery	Match motor	Battery Size(L*W*H)
60V50AH	2000W	245*195*380mm
60V50AH	2000W	320*260*170mm
60V50AH	2500W	390*230*150mm
60V50AH	2000W	300*200*160mm
60V40AH	3500W	330*150*210mm
60V30AH	1500W	250*200*160mm
72V80AH	5000W	350*304*300mm
72V60AH	6000W	320*190*310mm
72V40AH	1500W	220*170*300mm
72V30AH	1500W	220*170*300mm
72V30AH	3000W	200*185*300mm
72V25AH	2500W	265*185*130mm
48V12AH	500W	290*155*165mm

Items	Lifepo4 60v 30Ah battery	Lifepo4 60v 50Ah battery
Voltage	60v	60v
Capacity	30Ah	50Ah
Continue power	2000W	3000W
Charge current	15A	20A
Working Volt	45v to 65.7v	45v to 65.7v
Weight	20kg	35kg
Dimension	Customized	Customized

Our Advantages

BMS and Charger

Intelligent battery management system, all-round protection and supporting fuction customization likeBluetooth/CAN.

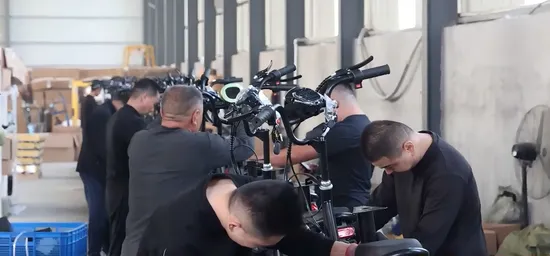

Production Details

From the battery cell to the battery pack,CTS controls every production link in stric accordance with theISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of thebattery,and presents the best products to every customer.

Application Cases

CTS lithium battery has a wider range of application and can meet 90% of electric and motorcycleproducts in the market.

Voltage&Capacity	Items	Parameter	Project Location	Picture
72V 100Ah	Battery type	NCM	Client Country: Canada Battery power: 7.2 kWh In operation since 2015
	Capacity	100Ah
	Voltage	72V
	Weight	80 kg
144V 100AH	Battery type	NCM	Client Country: Thalaind Battery power: 14.4 kWh In operation since 2020
	Capacity	100Ah
	Voltage	144V
	Weight(kg)	130.91 Kg
614V 100AH	Battery type	Lifepo4	Client Country: UK Battery power: 61.44 kWh In operation since 2019
	Capacity	100Ah
	Voltage	614.4V
	Weight	558.55 Kg
60V 35AH	Voltage	60V	Client Country: Korea Battery power: 2100Wh In operation since 2018
	Capacity	35Ah
	Continue power	4000W
	Max power	4300W
	Charge current	30A
51.8V 35AH	Voltage	51.8V	Client Country: Germany Battery power: 1813Wh In operation since 2018
	Capacity	35Ah
	Continue power	2000W
	Max power	3000W
	Charge current	20A

Company Profile

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries,large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electricvehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart,fork lift, cleaning car , electric wheelchair, etc.

We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realizedfull automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the bestquality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets jointogether to promote the development of renewable energy and friendly environment.

Customer Feedback
